BIPAP – Non-Invasive Ventilation Device

The BPAP device is designed for patients with obstructive sleep apnea–hypopnea syndrome (OSAHS) or respiratory insufficiency, as determined by a healthcare professional. It features a 3.5-inch color LCD screen for clear viewing of therapy information and supports storage of therapy-related data on a TF card. Measuring 280 × 200 × 112 mm and weighing 2.2 kg, the device is convenient to transport. Its detachable humidifier offers temperature levels from 0 to 5 and incorporates a backflow prevention design. An optional SpO₂ kit is available for real-time oxygen saturation monitoring, and the device operates at a noise level of no more than 30 dBA.

1. Multiple Respiratory Modes Including CPAP, S, T, S/T, And APCV To Meet Various Patient Needs.
2. Innovative Core Technology With High-end Swiss Pressure Sensors And Innovative Algorithm For Greater Sensibility.
3. Auto Sensibility (ISENS And ESENS) Automatically Adjusted Based On Individual Treatment Requirements.
4. VAF Settings To Maintain A Target Tidal Volume (50-2000ml) As Per Patients' Needs.
5. Real-time Data Monitoring Of Key Therapy Parameters For Effective Treatment.
6. User-friendly Interface With One Rotation Key For All Operation Needs, Enabling Fast Setup.
7. Real-time Audible Alerts For Power Failure, Air Leak, High/Low Pressure, Humidifier Failure, Etc.
8. Inspiratory Time Limit Setting (0.5-4s For Max/Min InspTime) To Ensure Effective Therapy.
9. Auto-air Compensation And Auto-adjustment Altitude Functions.
10. Auto-on/Auto-off Functions For Convenient Use.
11. Safety Design With Heating Feature For Humidifier And Back Flow Prevention.

1. For The Treatment Of OSAHS (Obstructive Sleep Apnea Hypopnea Syndrome) Patients.
2. For Respiratory Insufficient Patients Requiring Non-invasive Ventilation Therapy.

1. Read The User Manual Thoroughly Before First Use.
2. Ensure All Components Are Properly Assembled Before Operation.
3. Set Up Respiratory Modes, Pressure Parameters (IPAP: 4-30cmH2O, EPAP: 4-25cmH2O), And Other Settings As Advised By Healthcare Professionals.
4. Use The Rotation Key To Navigate The Interface And Adjust Settings.
5. Attach The Optional SpO2 Kit Correctly If Real-time SpO2 Monitoring Is Needed.
6. Fill The Humidifier With Distilled Water According To The Recommended Level And Select The Appropriate Temperature Setting (0-5 Level).
7. Check For Air Leaks Regularly During Therapy.
8. Turn Off The Device Before Disassembling For Cleaning Or Storage.

1. 1 × BIPAP – Non-Invasive Ventilation Device.
2. 1 × Humidifier.
3. 1 × Portable storage bag User Manual.
4. 1 × Breathing tube.

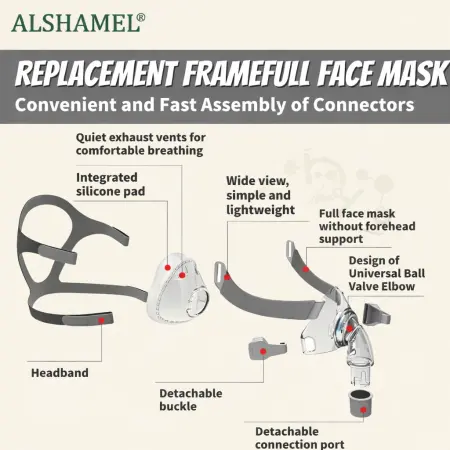

5. 1 × BIPAP mask (EaseFit FMIIP).
6. 1 × Power adapter and power cord.

1. Do Not Use The Device Without Guidance From A Healthcare Professional.
2. Avoid Using The Device In Explosive Or Flammable Environments.
3. Keep The Device Away From Water And Moisture Except For The Humidifier.
4. Do Not Disassemble The Main Unit By Yourself; Contact Professional Service For Repairs.
5. Stop Using The Device Immediately If Abnormal Noises, Smells, Or Malfunctions Occur And Contact Customer Service.
6. Ensure The Power Supply Matches The Device's Requirements To Prevent Damage.
7. The Humidifier Should Be Cleaned Regularly To Avoid Bacterial Growth.
8. Keep The Device Out Of Reach Of Children And Pets.

1. Store The Device In A Cool, Dry, And Well-ventilated Environment.
2. Keep The Device Away From Direct Sunlight And High Temperatures.
3. Disassemble The Humidifier, Clean It Thoroughly, And Dry It Before Storage.
4. Store All Components In Their Original Packaging If Possible To Prevent Damage.
5. Avoid Storing The Device In Places With Dust, Vibration, Or Extreme Temperature Changes.

ISO、CE
